      UNSURPASSED OPTICS--ACCURATE ADJUSTMENTS--INTERCHANGEABLE

Because of Bausch & Lomb's unique V-mounting system, a Bausch & Lomb Custom scope can be switched from rifle to rifle without rezeroing.  And no matter how the scope is jarred or banged, it will instantly return to zero.

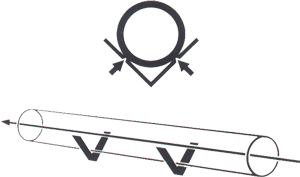

The front and rear portions of the scope are held in 2 V-shaped supports by clamp rings and a strong spring action. If the scope is moved it will come back to the exact same two points in the V-assembly.

It can only touch at these two points; it has no place else to go.

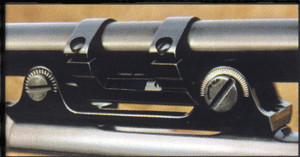

The one-piece base is made of beautifully finished tough aluminum alloy with steel adjustment rollers.  It can be used with either the spring clamp ring assembly or the plunger clamp ring assembly.

PLUNGER TYPE CLAMP RING ASSEMBLY

Permits instant removal or replacement of scope. For use only with the one-piece base. Does not fit the two-piece base.

The front base is adjustable for windage with a total range of plus or minus 40 inches at 100 yards.  The rear base is adjustable for elevation from minus 30 inches to plus 90 inches at 100 yards.  They can be installed by anyone on any drilled and tapped rifle in a few minutes.

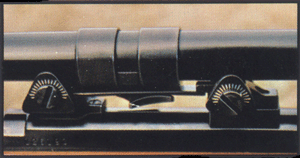

SPRING TYPE CLAMP RING ASSEMBLY

For use with either the one-piece or two-piece bases.  Scope can be removed or replaced on bases without tools in less than a minute.

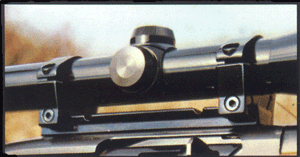

TROPHY SCOPE MOUNTS

These mounts are beautifully finished, streamlined, and truly rugged.  They can be installed by anyone on any drilled and tapped rifle in a few minutes.
